Coding Panel Dimensions Wiring Specifications

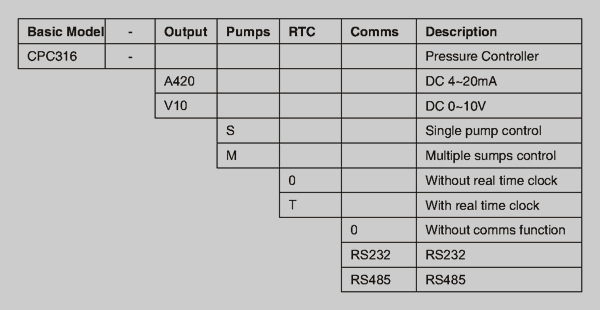

Coding

Model code examples:
CPC316-A420-M
CPC316-A420-M-T

Panel

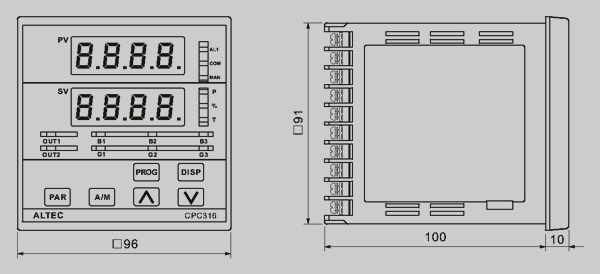

Dimensions

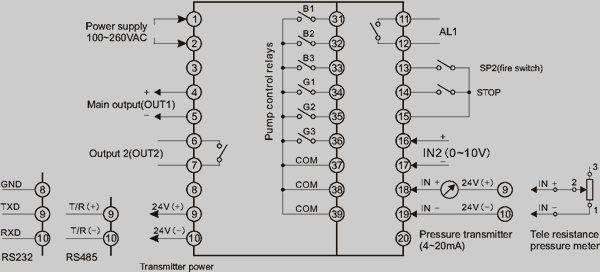

Wiring

Specifications

Accuracy	±1% RH
Sample rate	100ms
Input	0~50mV, 4~20mA, 0~10V, 0~400Ω
Output	Analog, 4~20mA, 0~20mA or 0~10V Relay, NO. max.250VAC, 3A
Alarms	Relay, NO. max.250VAC, 3A
Control Algorithm	Proportional Integral Control(PI)
Communications	RS-232 RS-485
Displays	Upper, 4 digits, high brightness green LED Lower, 4 digits, high brightness red LED LED indicators
Power Supply	100~260VAC, 50/60Hz, Max. 5 W
Environmental	Temp: 0~50℃, Rel. Humidity:≤85%
Dimensions	96(W)*96(H)*100(D)mm

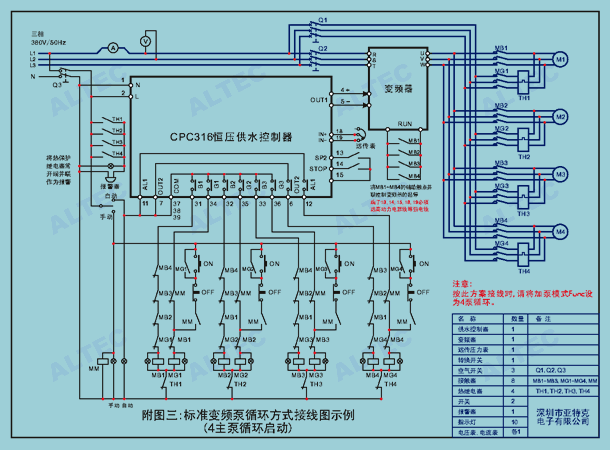

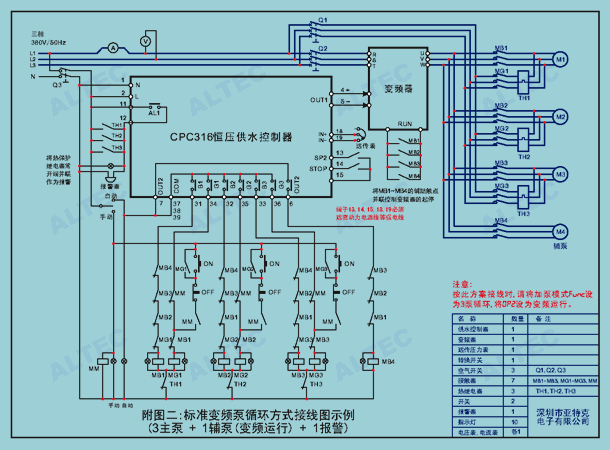

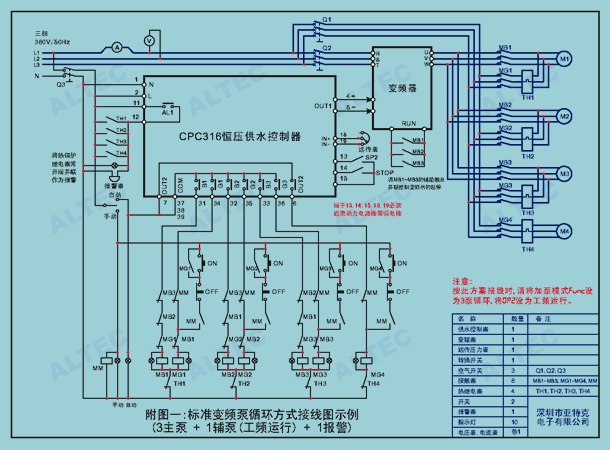

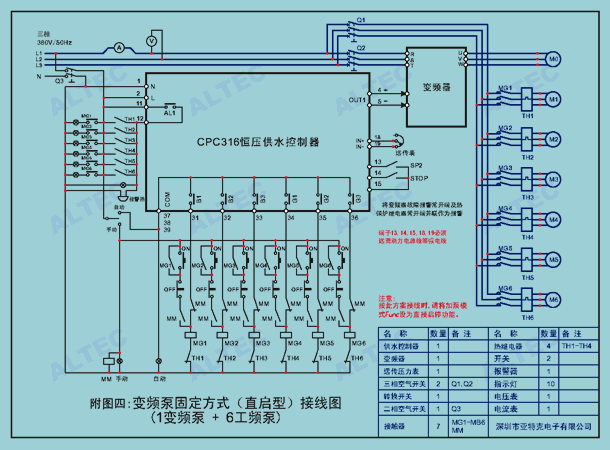

Typical Applications

---

---

---

---
