  Products Gallery

Products > Temperature Controllers > PC900



Coding

Panel Description

Dimensions & Mounting

Wiring

Price

Specifications

Coding

Basic Instrument
Output 1
Output 2
Alarm 1
Communications
Options

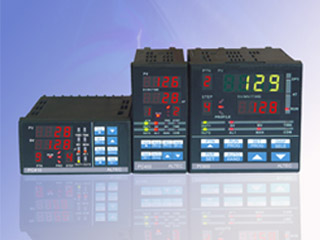

①.Basic Instrument

PC900
Universal PID Controller  Dimension: 96*96*100mm
PC400
Universal PID Controller  Dimension: 48*96*100mm (Vertical)
PC410
Universal PID Controller  Dimension: 96*48*100mm (Horizontal)

②.Output 1

0
No output
R
Relay, (NO, 3 A/250 VAC)
L
Logic, (20 V/20 mA),drive solid state relay(SSR)
D
Analog, (0-10 mA, 4-20 mA, 0-20 mA, 0-5 V, 1-5 V, 0-10 V)
T1

T3

Y1
Single phase shifting pulse output, drive SCR
Y3
Three phase shifting pulse output, drive SCR

③.Output 2

0
None
R
Relay, (NO, 3A/250 VAC)
L
Logic, 20 V/10 mA , drive solid state relay(SSR)
D
Analog output (0-10 mA, 4-20 mA, 0-20 mA, 0-5V, 0-10 V)
T1


④. Alarm 1

0
No alarm output
R
Relay, (NO, 3A/250 VAC)

⑤.Communications

0
None
232
RS232, 3 wire, comms distance: 15 m
485
RS485, 2 wire, comms distance: 1.2 Km

⑥.Options

0
None
Rem
Remote
QP16
16 Segments program
PVT
Process Value Transmission
Clk
Real Time Clock
SVT
Setpoint Transmission
Prt
Print

Here are two examples:

PC900/R/R/0/232
Size: 96x96mm
Output 1: Relay
Output 2: Relay
Alarm 1: None
Comms: RS232
Option: None

PC410/L/0/R
Size: 96x48mm (Horizontal)
Output 1: Logic
Output 2: None
Alarm 1: Relay
Comms: None

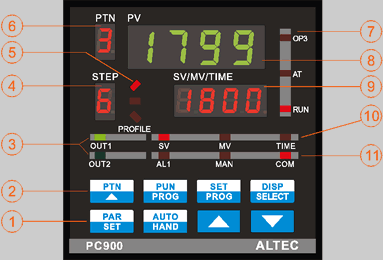

Panel Description

SN
Item
Function Description
PAR/SET
Parameter setting key
AUTO/HAND
Auto/Manual operation selection
Increase value
Decrease value
PTN
Selects the program pattern number
RUN/PROG
Starts the program
SET/PROG
Program parameter setup
DISP/SELECT
Change the indication on the lower display
OUT1
The LED indicator is lit when output 1 is ON
OUT2
The LED indicator is lit when output 2 is ON
STEP
Indicates the step number of program
PROFILE
(Program monitor indicator)
During program control, "/'" is lit when PV is rising
During program control, "-" is lit when PV is constant
During program control, "\" is lit when PV is falling
PTN display It indicates the pattern number
OP3
The LED indicator is lit when output 3 is ON
AT
TunE on SV/MV/TIME flashes during auto-tuning
RUN
The LED indicator is lit during program control
PV display
Indicates the Process Variable and parameter
SV/MV/TIME display
Indicates the Setting Value(SV), Manipulating Value(MV) or Time
The display can be changed by the 'DISP SELECT' key
SV
It is lit when the Setting Value is being displayed on the lower display
MV
It is lit when the Manipulating Value is being displayed on the lower display
TIME
It is lit when the TIME is being displayed on the lower display
AL1
It is lit when alarm 1 output is ON
MAN
It is lit in manual operation mode
COM
It flashed when the controller is in active communication with a host computer

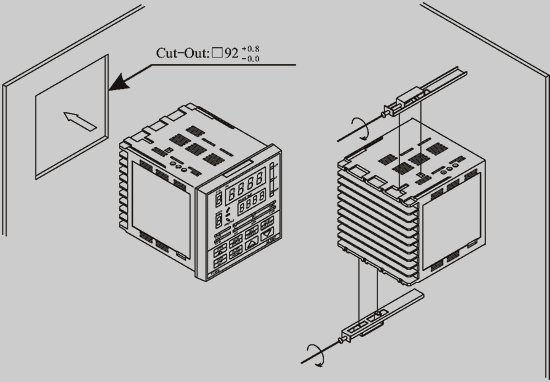

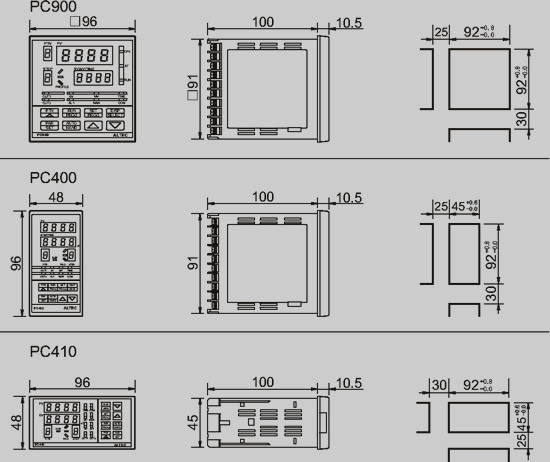

Dimensions & Mounting

Wiring

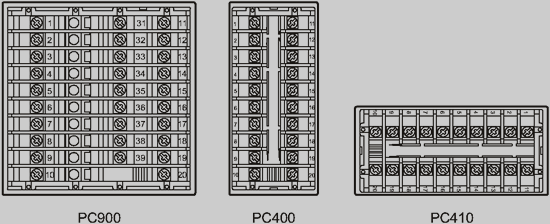

Rear Terminal Layout

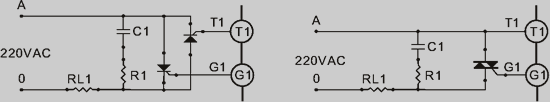

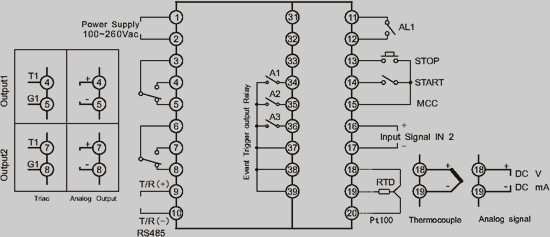

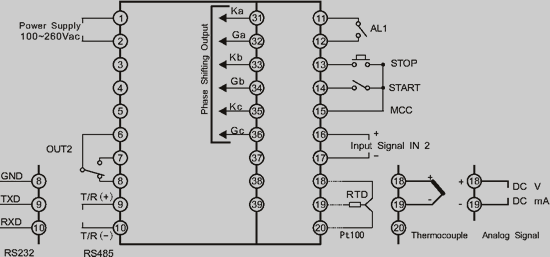

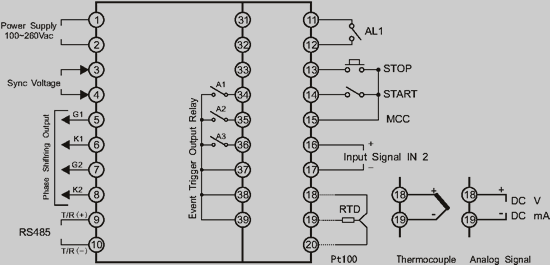

Electrical Connection





PC900 Programmable controller (basic)
US$ 162.-
Output Module:
Auxiliary Sensor Power Supply(24V)
+ US$ 0.-
Relay output(R)
+ US$ 0.-
Logic output(L)
+ US$ 0.-
1-phase TRIAC(T)
+ US$ 2.70
3-phase TRIAC(3T)
+ US$ 20.30
1-phase shift SCR(1Y)
+ US$ 13.50
3-phase shift SCR(3Y)
+ US$ 54.-
Analog output(D)
+ US$ 13.50
Communication Module:
RS232
+ US$ 27.-
RS422/RS485
+ US$ 27.-

Specifications

Input
Thermocouple Types: J, K, E, R, S, T, B, N
RTD: Pt100, Cu50
Analog Input
(DC mA, DC V)
0-20 mA
4-20 mA
-10.0-50 mV
0-10 V
Output
Relay, max.250 VAC, 3A
Logic, drive solid state relay(SSR)
SCR
Analog Output, 0-10mA, 0-20mA, 4-20mA, 0-5V, 1-5V, 0-10V
Accuracy
±0.1 °C
Resolution
±0.2% (+) 1 digit
Sample Rate
125 ms
Program Control
10 patterns(profile)
Up to 16 steps/pattern
1-200 program loop cycles, or continuous loop cycling
Alarms
Output: Relay, max. 250 VAC, 3A
High alarm
Low alarm
Deviation band alarm
Control Action
ON/OFF
PID, PID Auto-Tuning
Communications
RS-232 (3 wire)
RS-485 (2 wire)
Displays
Upper, 4 digits, high brightness green LED
Lower, 4 digits, high brightness red LED
LED indicators
Dimensions
(unit: mm)
96*96*100
48*96*100
96*48*100
Environmental
Ambient Temp: 0-50 °C
Humidity: ≤ 85%
Power Supply
85-264 VAC, 45/60 Hz
