Products > Temperature Humidity Controllers > MTC35



Coding

Panel Description

Dimensions

Typical Wiring

Coding

①、Software Function

F10
 Single input temperature controller
F20
 Dual channel temperature controller
F30
 Single input humidity controller
F40
 Temperature & humidity Controller
C20
 Air conditioner controller
C21

Temp. Differential Controller

②、Input

1T
 1 Temperature Sensor
1H
 1 Humidity Sensor
1T1H
 1 Temp.+ 1 Humi. Sensor
2T
 2 Temperature Sensors

③、Output

0
 no output
1R
 1 Relay
2R
 2 Relays



④、Power Supply

12V
 12V AC/DC
24V
 24V AC/DC
220V
 220VAC

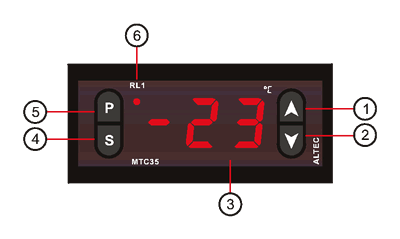

Panel Description

①. Up Key

②. Down Key

③. Display, indicates PV, Parameter, Values

④. Setting Key(S)

⑤. Parameter key(P)

⑥. Output 1 indicator(AL1)

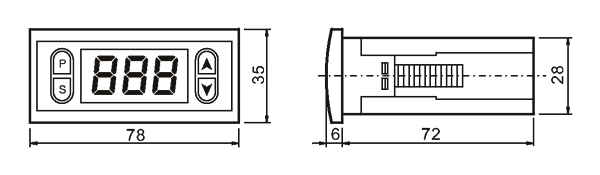

Dimensions(unit: mm)

Typical Wiring

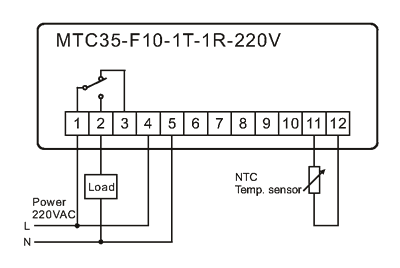

Single temperature input

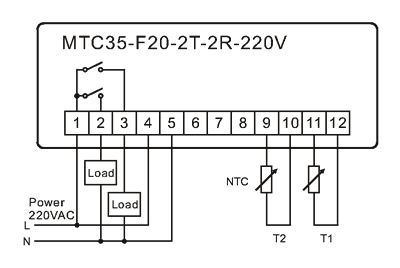

Dual temperature input

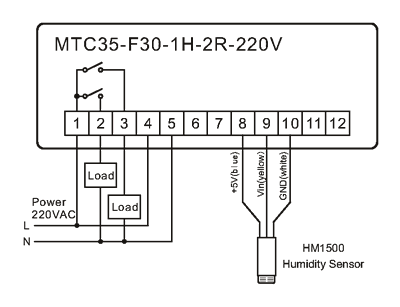

Single humidity input

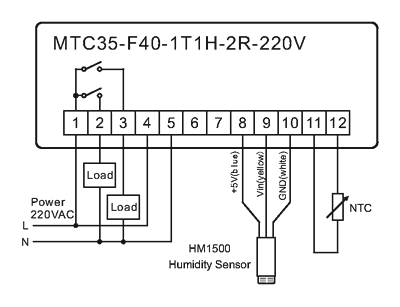

1 temp. + 1 humi. sensor input
