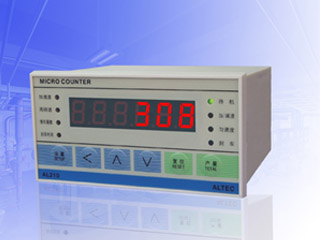

ALTEC - AL210 Winding Controller

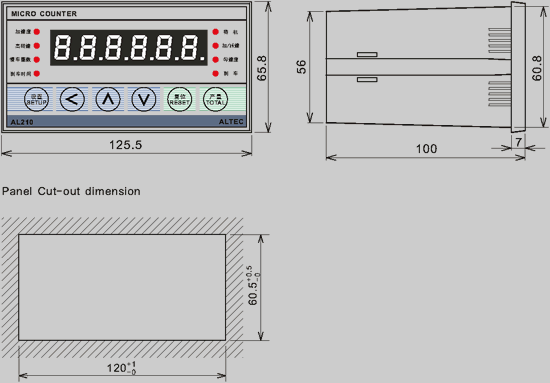

Dimensions

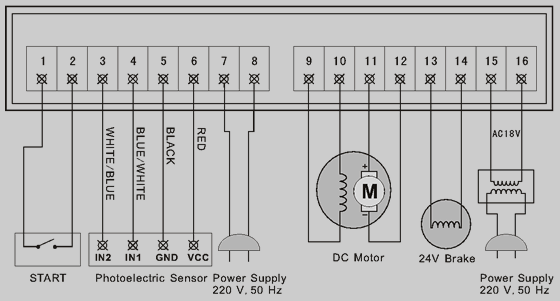

Wiring

Specifications

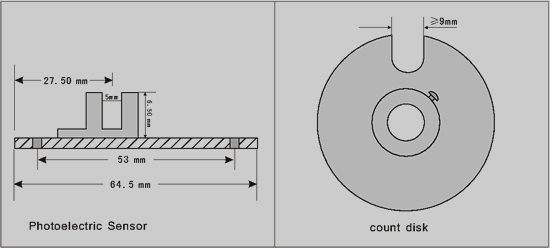

Input	Photoelectric sensor
Sampling Time	125 ms
Control Action	PID
Displays	6 digits, high brightness red LED LED indicators
Dimensions (unit: mm)	126(W)66(H)100(D)
Environmental	Ambient Temp: 0-50 °C Humidity: ≤ 85%
Power Supply	85-264 VAC, 45/60 Hz
