Key Specifications
- Rated load
- 150N, 300N, 500N and 1000N
- Power supply
- DC 5V/20mA or DC 24V/20mA
- Dimensions
- 134×48×78 mm
- Environment
- 0-40°C
Back to products
Tension Sensors
LXA

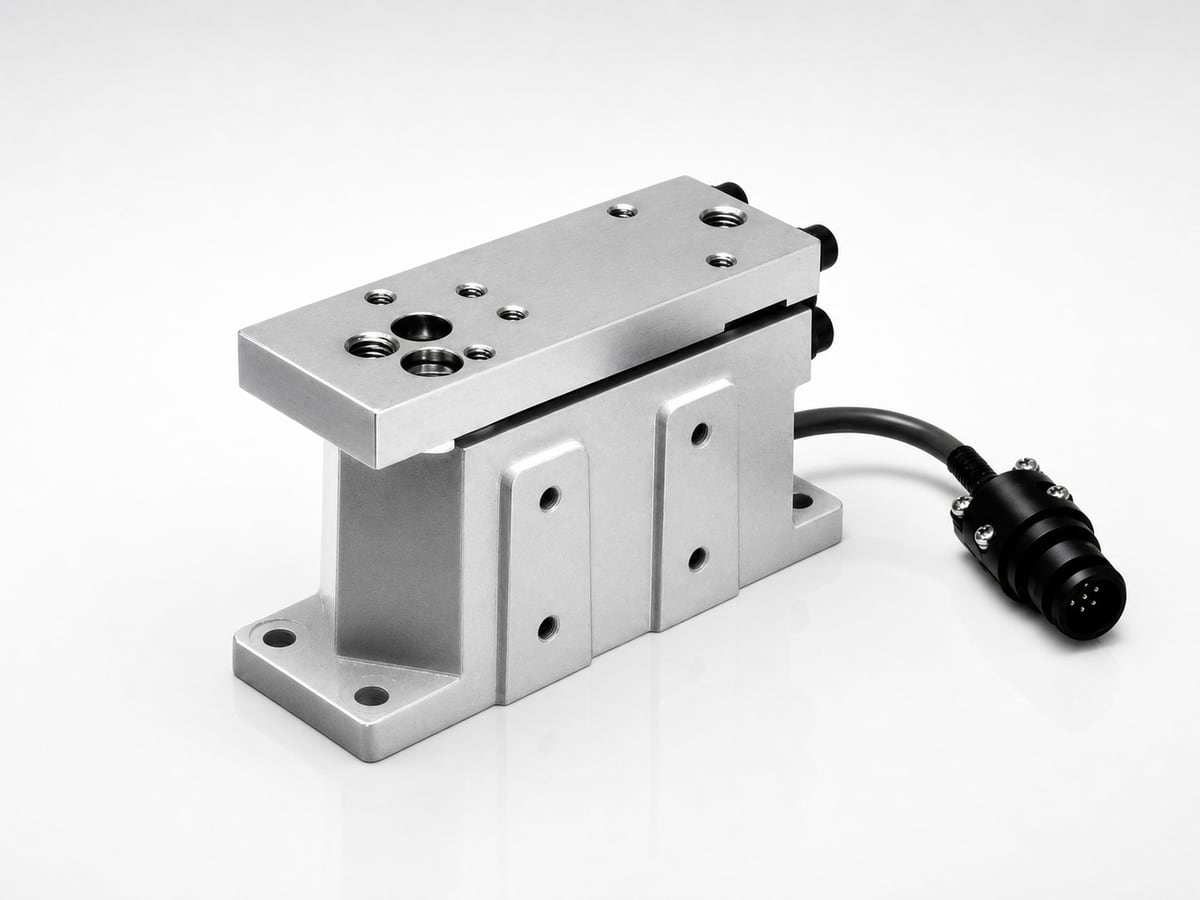

Micro-displacement Tension Sensor
The LXA micro-displacement tension sensor converts roller load into a displacement-based tension signal, with 5V and 24V supply versions.
Technical Detail
Technical Details
The LXA series tension sensor uses roller load to create micro-displacement in a spring plate, then converts the displacement into a tension signal. Standard 5V and PLC-oriented 24V versions are available.
Order Code
| Model | LXA |
|---|---|
| Rated Load | 150N, 300N, 500N, 1000N |
| No suffix | 5V DC supply, 0-200mV output |
| X suffix | 24V DC supply, 0-10V or 0-5V output for PLC |

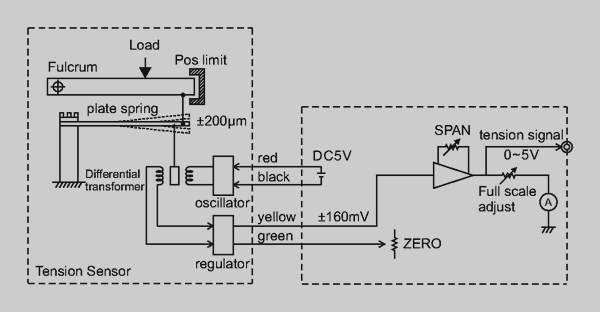

Working Principle

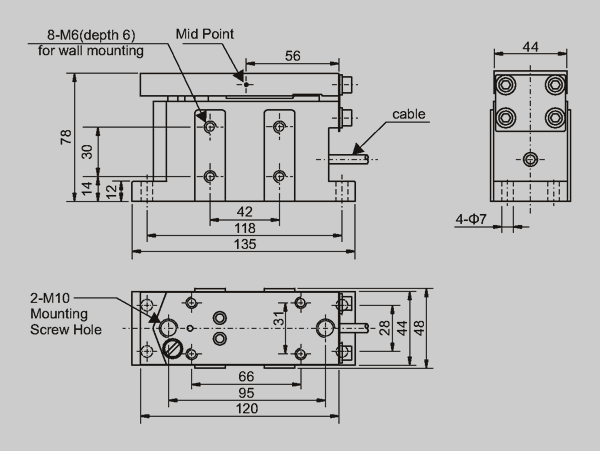

Outline Dimensions

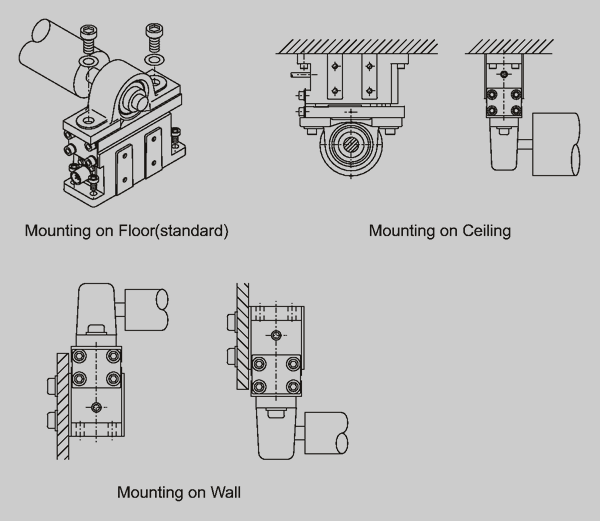

Mounting
Wiring
Specifications
| Rated Load | 150N, 300N, 500N, 1000N |
|---|---|
| Load Direction | Stress or stretch |
| Mounting | Floor, ceiling or wall |
| Cable | 4-core shield cable, 3 to 6m |
| Power Supply | DC 5V/20mA or DC 24V/20mA (LXA-X) |
| Environment | 0-40°C |
| Dimensions | 134×48×78mm |
| Weight | 1.8kg |
Documents
- LXA Series Tension Sensor Manual PDF
