Products > Humidity Controllers > TH135



Coding

Panel Description

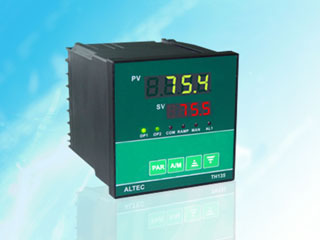

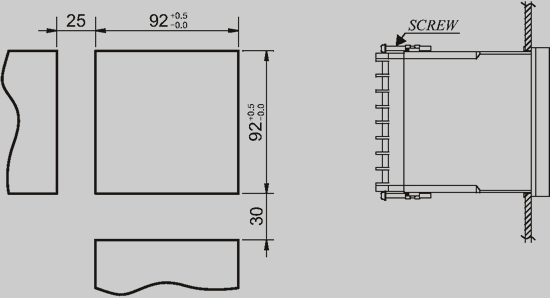

Dimensions & Mounting

Wiring

Specifications

Typical Application

Coding

TH135
Output 1
Output 2
Alarm 1
Communications
Options

①②. Output 1 & Output 2

0
None
R
Relay, (NO, 3A/250 VAC)
L
Logic, 20 V/10 mA , to drive solid state relay(SSR)
T
Triac, to drive SCR
D
Analog output (0-10 mA, 4-20 mA, 0-20 mA, 0-5V, 0-10 V)

③. Alarm 1

0
No alarm output
R
Relay, (NO, 3A/250 VAC)

④. Communications

0
None
232
RS232, 3 wire, comms distance: 15 m
485
RS485, 2 wire, comms distance: 1.2 Km

⑤. Options

0
None

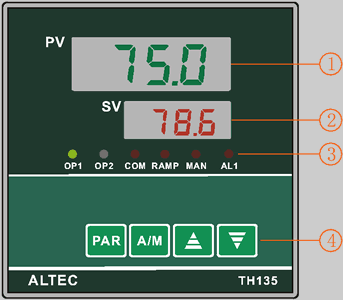

Panel Description

SN
Item
Function Description
PV display
Indicates the Process Value;
Display the Abbreviation of the Parameters
SV display
Indicates the Setting Value, parameter value, alarm code
OP1
Output 1 indicator
OP2
Output 2 indicator
COM
Communication indicator
MAN
Manual operating mode indicator
AL1
Alarm indicator
PAR
Parameter scroll key
A/M
Auto/Manual operating switch key
Increase value
Decrease value

Dimensions & Mounting

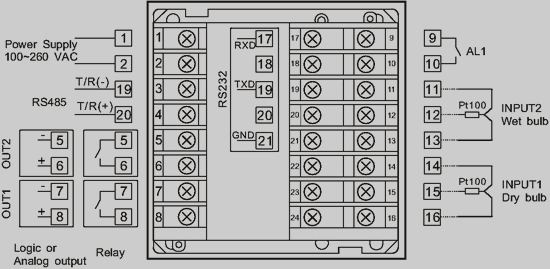

Wiring

Specifications

Input
Dual Pt100 temperature sensor
Output
Relay, max.250 VAC, 3A
Logic,drive solid state relay(SSR)
Analog Output, 0-10mA, 0-20mA, 4-20mA, 0-5V, 1-5V, 0-10V
Accuracy
Temp: ±0.2%, Humidity: ±1%
Resolution
Temp:0.1     Humidity:1% RH
Measurement Range
-100-200℃,0-99%RH
Sampling Time
125 ms
Control Action
ON/OFF
PID
Alarm
High alarm
Low alarm
Deviation band alarm
...
Communications
RS-232
RS-485
Displays
Upper, 4 digits, high brightness green LED
Lower, 4 digits, high brightness red LED
LED indicators: OP1, OP2, COM, RAMP,  MAN, AL1
Dimensions
96(W)*96(H)*100(D)mm
Power Supply
220 VAC, 50/60 Hz

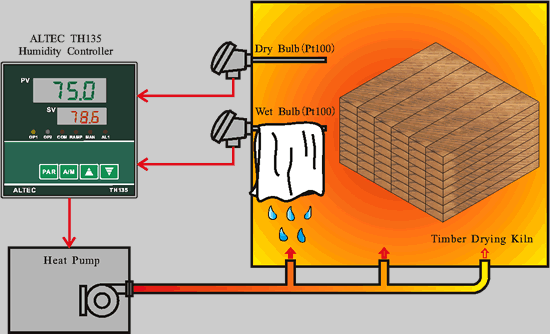

Typical Application
