Coding

TH136	Dimensions	Output 2	Output 1	Alarm 1	Communications	Options
	①	②	③	④	⑤	⑥

①.  Dimensions None 96*96*100mm M 72*72*100mm	④. Alarm 1 0 No alarm output R Relay, (NO, 3A/250 VAC)
②③. Output 2 & Output 1 0 None R Relay, (NO, 3A/250 VAC) L Logic, 20 V/10 mA , to drive solid state relay(SSR) T Triac, to drive SCR D Analog output (0-10 mA, 4-20 mA, 0-20 mA, 0-5V, 0-10 V)	⑤. Communications 0 None 232 RS232, 3 wire, comms distance: 15 m 485 RS485, 2 wire, comms distance: 1.2 Km
	⑥.Options 0 None

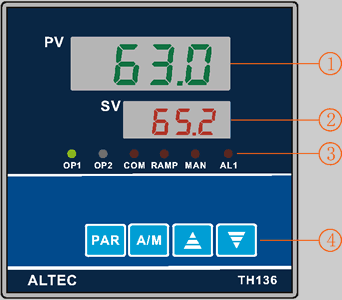

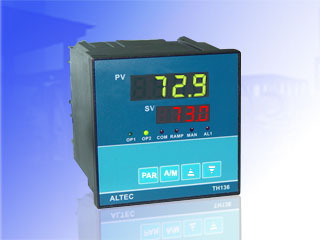

Panel Description

SN Item Function Description PV display Indicates the Process Value; Display the Abbreviation of the Parameters SV display Indicates the Setting Value, parameter value, alarm code OP1 Output 1 indicator OP2 Output 2 indicator COM Communication indicator MAN Manual operating mode indicator AL1 Alarm indicator PAR Parameter scroll key A/M Auto/Manual operating switch key Increase value Decrease value

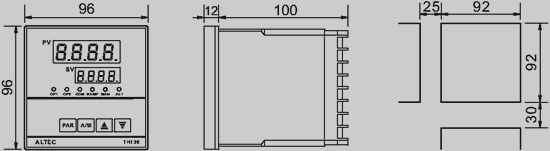

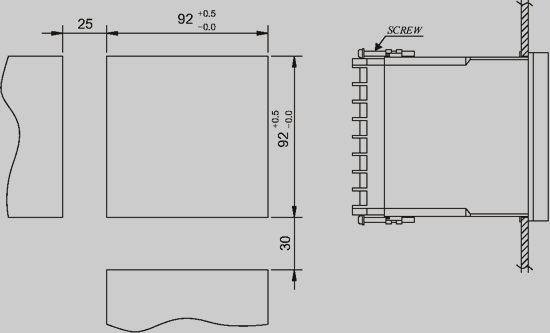

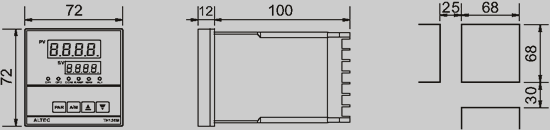

Dimensions & Mounting

Wiring

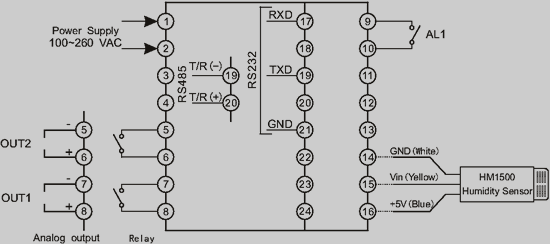

1. TH136 (Panel: 96*96)

---

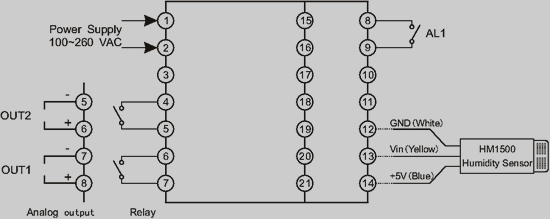

2. TH136M (Panel: 72*72)

Specifications

Input	HM1500 humidity sensor
Output	Relay, max.250 VAC, 3A Logic, to drive solid state relay(SSR) Analog Output, 0-10mA, 0-20mA, 4-20mA, 0-5V, 1-5V, 0-10V
Measurement Range	0-99% RH
Accuracy	±1% RH
Resolution	%1 RH
Sample Rate	125 ms
Program Control	1 program(profile) Up to 16 segments 1-200 program loop cycles, or continuous loop cycling
Control Action	ON/OFF PID
Alarm	High alarm Low alarm Deviation band alarm ...
Communications	RS-232 RS-485
Displays	Upper, 4 digits, high brightness green LED Lower, 4 digits, high brightness red LED LED indicators
Dimensions	96(W)*96(H)*100(D)mm
Power Supply	100 - 220 VAC, 50/60 Hz
Power Consumption	Max. 5 W

---
