ALTEC - TC818 Tension Controller

Coding

TC818

Main output

Aux Output 1

Aux Output 2

Comms

Version

①

②

③

④

⑤

⑥

①. Basic Instrument

②. Main Output

Code	Meaning
TC818	Automatic Tension Controller

Code	Meaning
0	None
24V	24V/4A, drive magnetic powder brake/clutch

③. Aux Output 1 ④. Aux Output 2

⑤. Communications

Panel

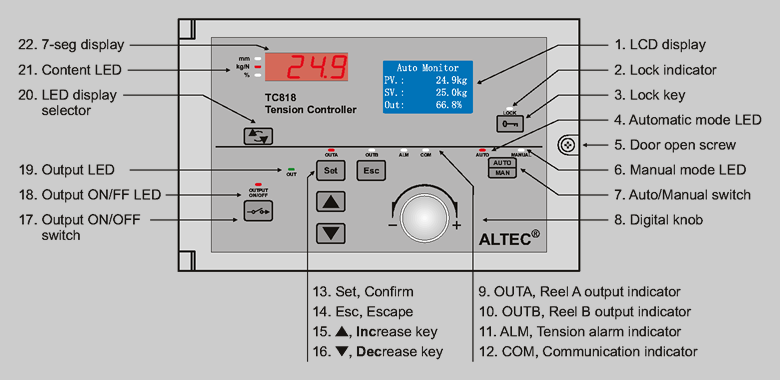

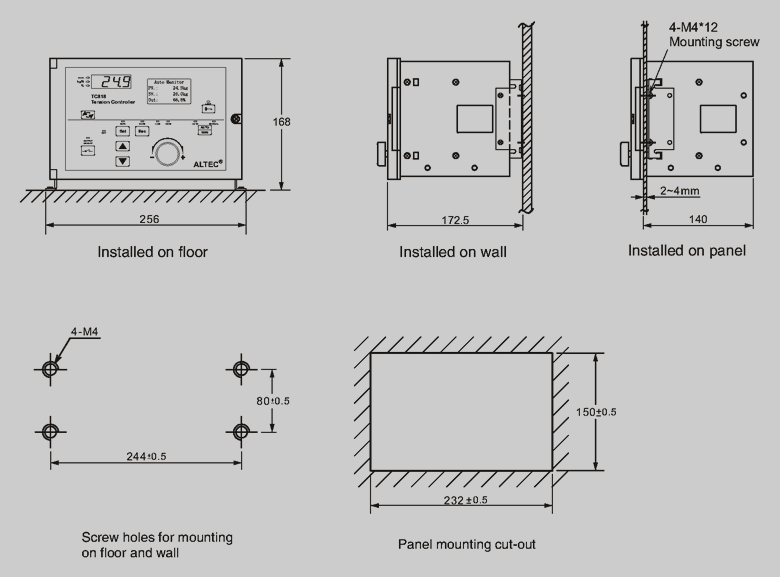

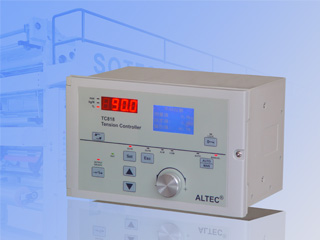

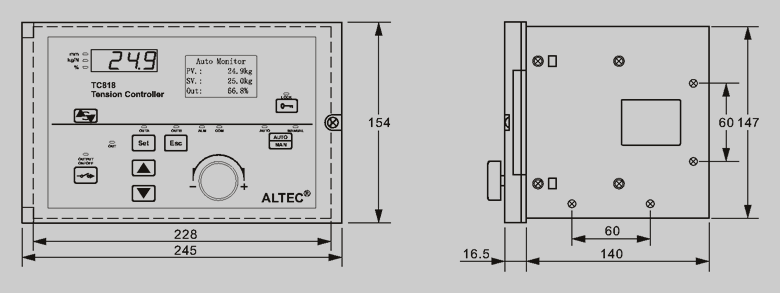

Dimensions & Mounting(unit: mm)

The controller can be installed on the floor, wall or panel.

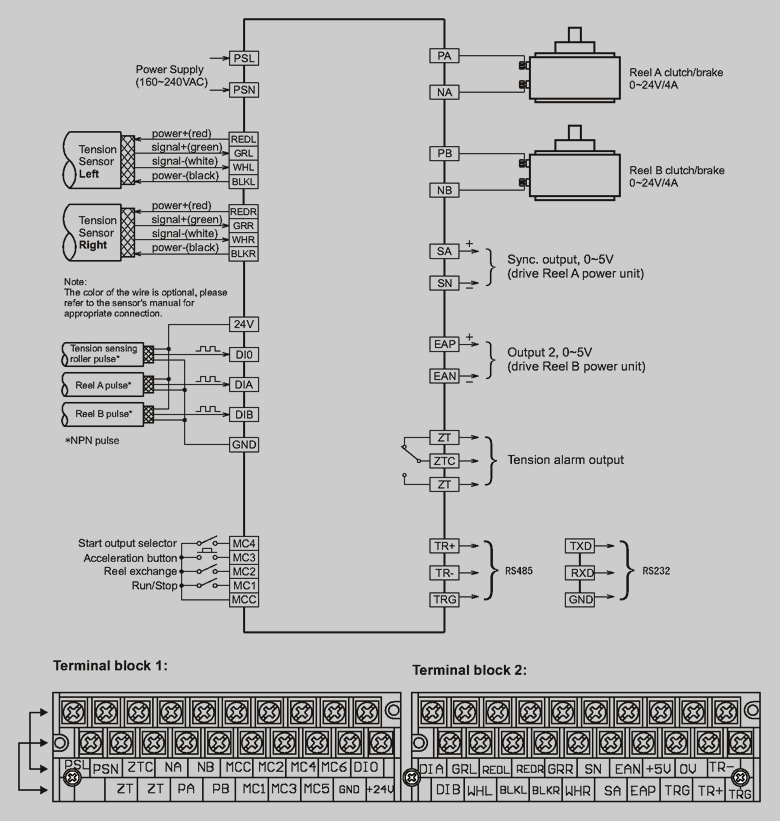

Wiring

Specifications

Tension Input	1. Micro-displacement based tension sensor(signal range: 200mV, power supply: 5VDC) 2. Strain gauge based tension sensor(signal range: 20mV, power supply: 10VDC)
Radius Detection	Proximity switch or encoder, NPN signal, maximum frequency: 15KHz
Measurement Precision	±0.2%FS ± 1 digit
Sampling Rate	100 ms
Control Algorithm	PI(Proportional Integral)
Main Outputs	Dual 24V/4A, drive magnetic powder brake/clutch
Auxiliary Outputs	Dual 0~20mA, drive inverter or Electric-Pneumatic converter
Tension Alarm	Relay, Normally Open, 3A/250V AC
Communications	RS-232 RS-485
Display	4 digits, high brightness red LED 128x96 graphics LCD
Dimensions	246(W)x154(H)x156.5(D), unit: mm
Environmental	Ambient Temp: 0-50 °C Humidity: ≤ 85%
Power Supply	92~240V AC, 50/60 Hz
