Coding Panel Description Dimensions & Mounting Wiring Specifications Typical Applications

Coding

TC930	Main output	Communications
	①	②



①. Main output A420 4~ 20 mA V05 0 ~ 5 V V10 0 ~ 10 V

②. Communications 0 None RS232 RS232, 3 wire, comms distance: 15 m RS485 RS485, 2 wire, comms distance: 1.2 Km BS Tension transmission

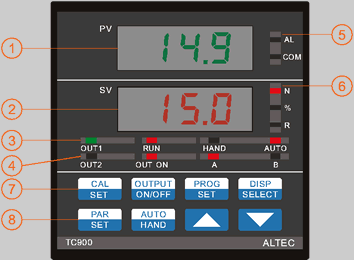

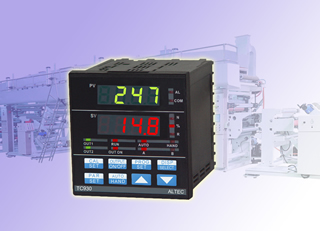

Panel Description

SN Item Function Description PV display Indicates the Process Value Abbreviation of the Parameter names display SV display Indicates the Setting Value, parameter value, alarm code OUT1 Output 1 indicator RUN Running indicator, lit when MCC and MC1 are shorted HAND Manual operating mode indicator AUTO Auto operating mode indicator OUT2 Output 2 indicator OUT ON Output on/off indicator, lit while output is 'ON' A A shaft running indicator B B shaft running indicator AL Roll diameter low alarm indicator COM Communication indicator N Tension setpoint indicator % Output power indicator R Synchronous speed indicator CAL/SET Calibration key OUTPUT ON/OFF Output ON/OFF switch key PROG/SET Program setting key DISP/SELECT Lower display switch key PAR/SET Parameter setting key AUTO/HAND Auto/Manual operating mode switch key Increase value Decrease value

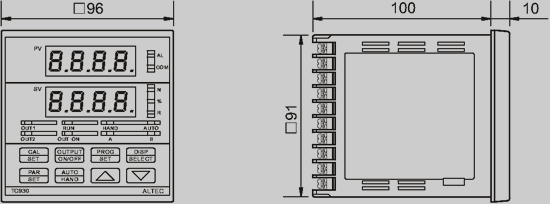

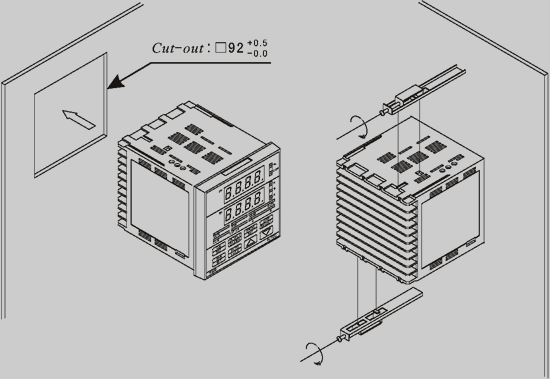

Dimensions & Mounting

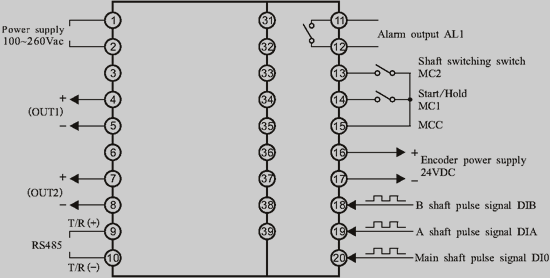

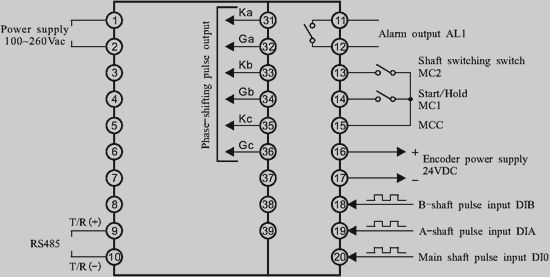

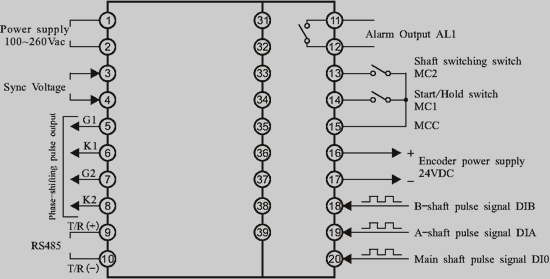

Wiring

---

---

Specifications

Input	Proximity switch or Encoder NPN transistor, Max Freq. 15k Hz
Output	Dual 0~20mA, 4~20mA, PWM Phase-shifting output
Alarm	Zero tension alarm
Control Algorithm	Diameter detection tension control
Communications	RS-232 RS-485
Displays	Upper, 4 digits, high brightness green LED Lower, 4 digits, high brightness red LED LED indicators: OUT, OUTA, OUTB, COM, AUTO, etc.
Keypad	7 keys
Dimensions	96mm*96mm*110mm
Environmental	Ambient Temp: 0-50 °C Humidity: ≤ 85%
Power Supply	100-240 VAC, 50/60 Hz

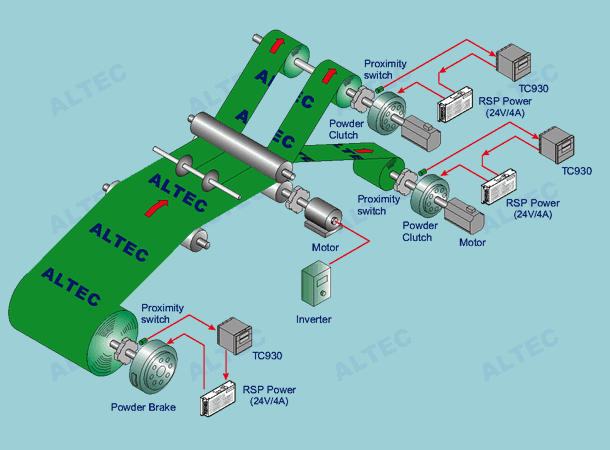

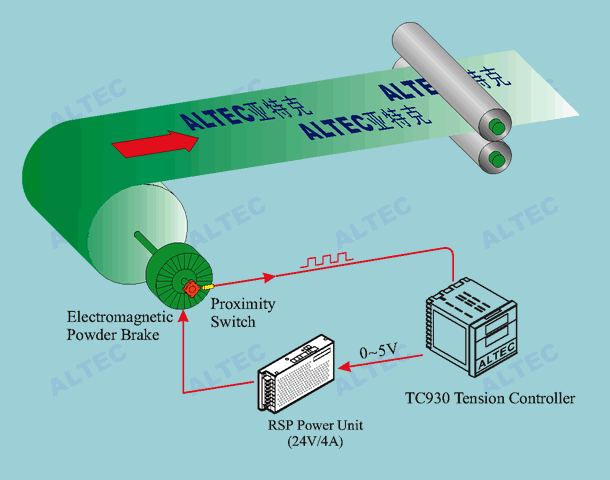

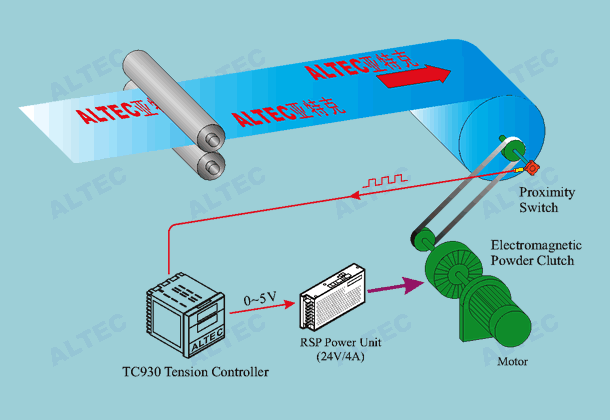

Typical Applications

---
