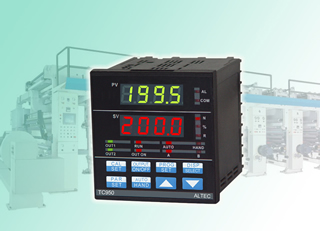

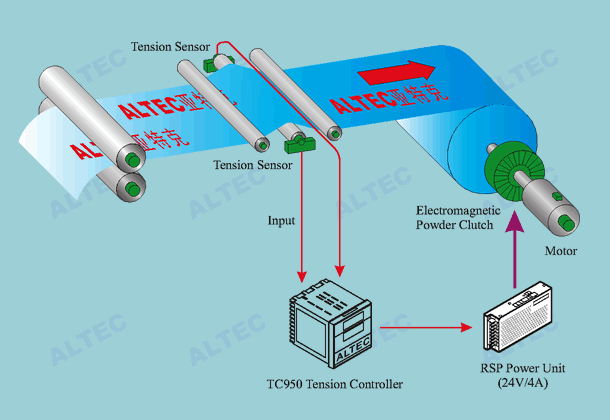

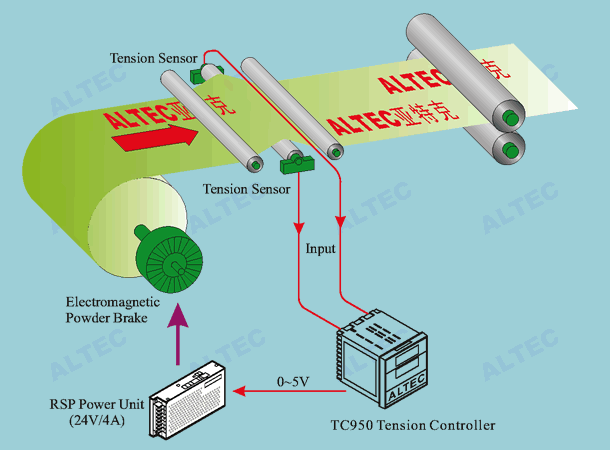

ALTEC - TC950 Tension Controller

Coding

TC950	-	Main output	-	Communications

(1)

(2)

(1). Main output

A420	4~ 20 mA
V10	0 ~ 10 V
PWM	Pulse-Width Modulation output
Y1	Sing phase-shifting output
Y3	Three phase-shifting output

(2). Communications

e.g. TC950-A420-0, TC950-V10-0

SN	Item	Function Description
	PV display	Indicates the Process Value Abbreviation of the Parameter names display
	SV display	Indicates the Setting Value, parameter value, alarm code
	OUT1	Output 1 indicator
	RUN	Running indicator, lit when MCC and MC1 are shorted
	HAND	Manual operating mode indicator
	AUTO	Auto operating mode indicator
	OUT2	Output 2 indicator
	OUT ON	Output on/off indicator, lit while output is 'ON'
	A	A shaft running indicator
	B	B shaft running indicator
	AL	Alarm indicator
	COM	Communication indicator
	N	Tension setpoint indicator
	%	Output power indicator
	R	Synchronous speed indicator
	CAL/SET	Calibration key
	OUTPUT ON/OFF	Output ON/OFF switch key
	PROG/SET	Program setting key
	DISP/SELECT	Lower display switch key
	PAR/SET	Parameter setting key
	AUTO/HAND	Auto/Manual operating mode switch key
		Increase value
		Decrease value

Resolution	±0.2%FS ±1digit
Sample Rate	100 ms
Tension Signal Input	0 ~ 50 mV
Output	Analog: 4~20mA, 0~20mA , 0~10V PWM Sing phase-shifting output Three phase-shifting output
Alarm	zero tension alarm Output: Relay, NO, Max. 250 VAC 3A
Control Algorithm	PID(Proportional, Integral, Derivative)
Communications	RS-232 RS-485
Displays	Upper, 4 digits, high brightness green LED Lower, 4 digits, high brightness red LED LED indicators
Dimensions	96(W)96(H)100(D)mm
Environmental	Ambient Temp: 0-50 °C Humidity: ≤ 85%
Power Supply	100-240 VAC, 50/60 Hz

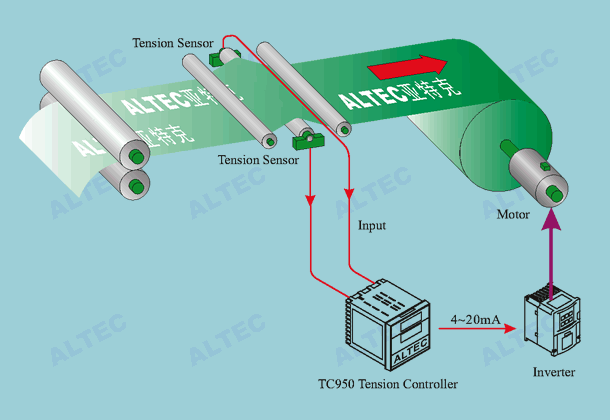

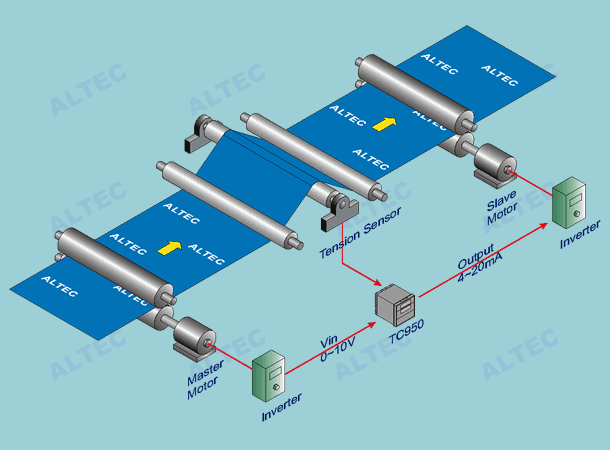

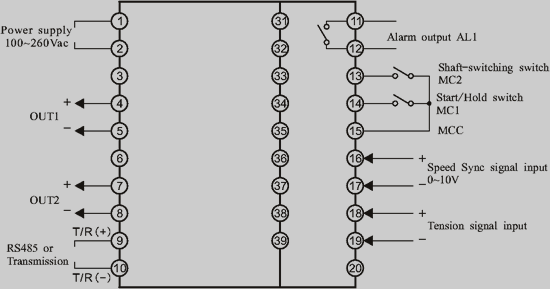

TC950-A420 with Inverter

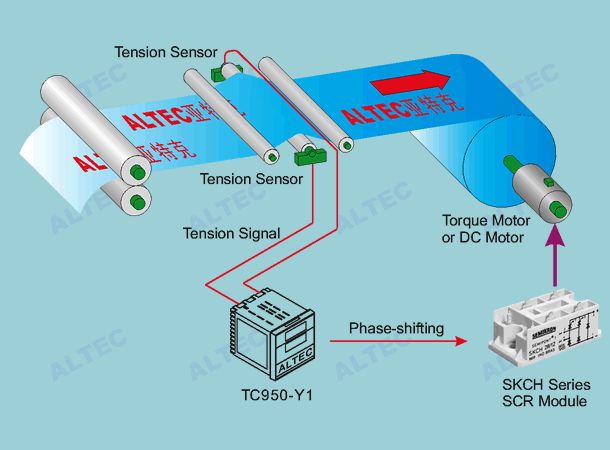

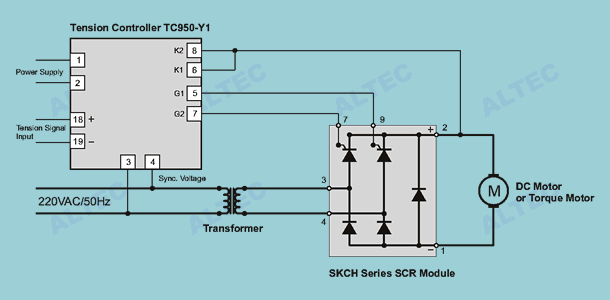

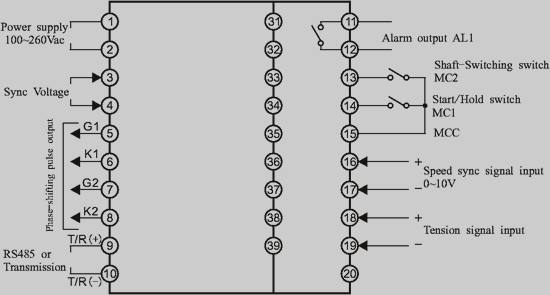

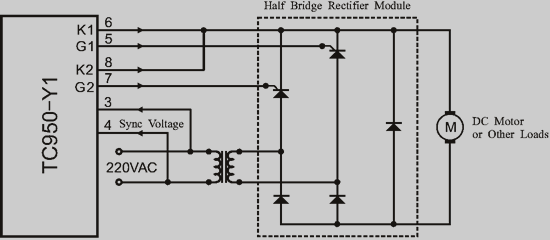

TC950-Y1-0 with SKCH Series SCR Module ( PDF Version, 238K)
