Products > Tension Controllers > HTS Series Tension Sensor

Technical Data

Model	HTS-100	HTS-150	HTS-200	HTS-300	HTS-500
Rated Capacity	100N	150N	200N	300N	500N

Insulation Resistance	≥ 2000 MΩ(100 V)	Non-lineatity	0.1% F.S
Input Impedance	350 Ω	Hysteresis	0.1% F.S
Output Impedance	350±1 Ω	Repeatability	0.1% F.S
Excitation	6~12 VDC	Weight	1.8 Kg
Consumption	≤0.4 W	Socket	X14K4P
Zero	≤1% F.S.	Plug	X14J4A
Rated Output	2 mV/V

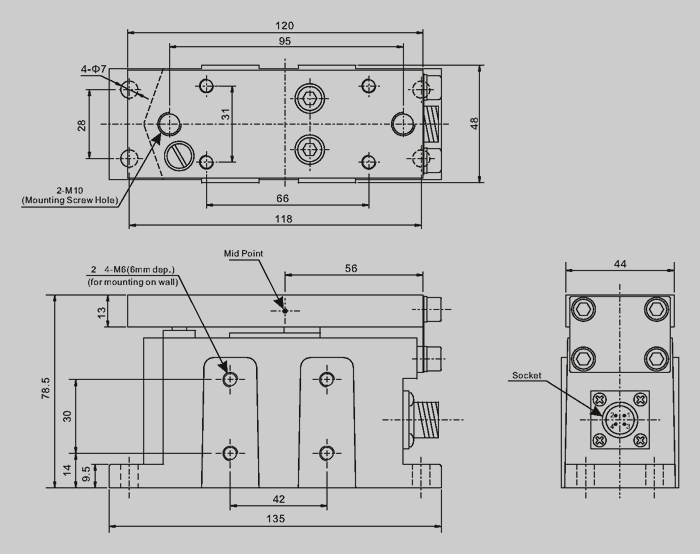

Dimensions

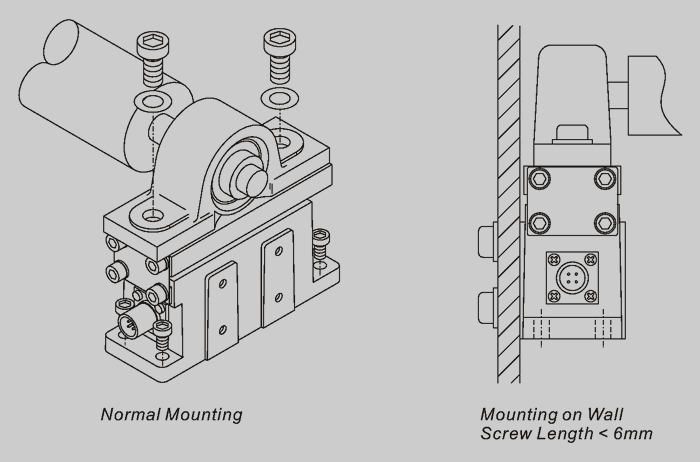

Mounting

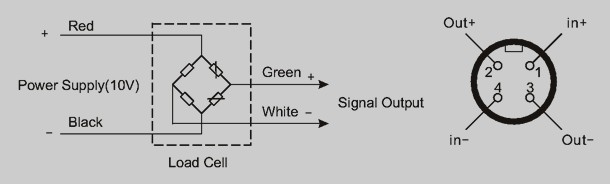

Wiring

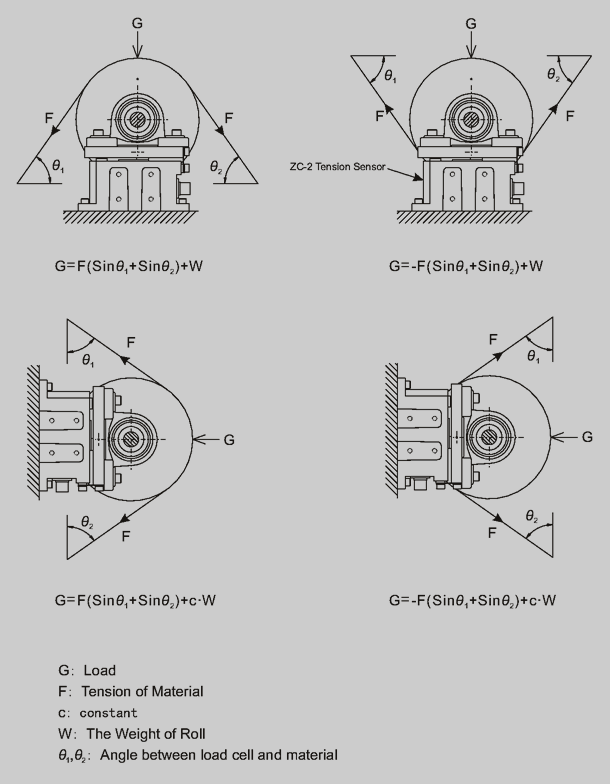

Force Analysis
