Products > Tension Controllers > LX Series Tension Sensor



Specifications

Working Principle

Outline Dimensions

Mounting

Wiring

Order Code

Specifications

Rated Load

150N, 300N, 500N, 1000N

Power Supply

DC 5V/20mA
DC 24V/20mA(LX-X)

Load Direction

Stress or Stretch Environmental Ambient Temp: 0~40 °C
Mounting on Floor, Ceiling, Wall

Dimensions

 134x48x78(mm)

Cable

 shield cable, 3~6 metre

Weight

 1.8 Kg

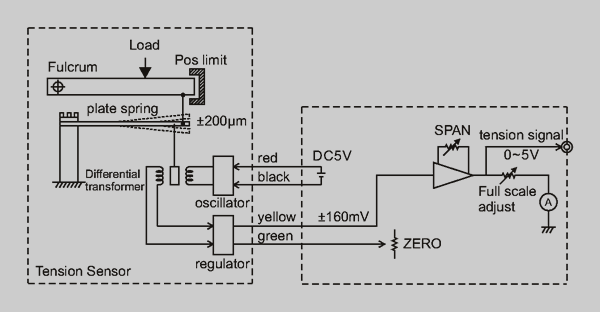

Working Principle

Outline Dimensions

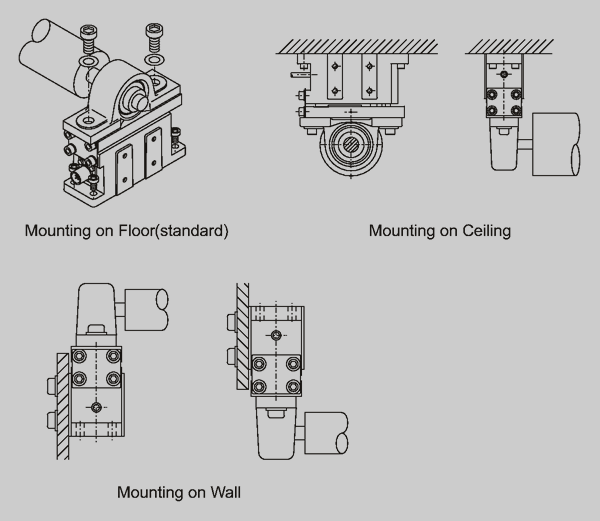

Mounting

Wiring

Order Code

Model

 Rated Load Power supply

Output

 Suffix

LX

150N, 300N, 500N, 1000N 5V DC 0 ~ 200mV None
24V DC

0~10V, 0~5V(for PLC)

X
