Products > Tension Controllers > SUP Series Tension Sensor

Technical Data
Dimensions
Mounting
Wiring
Calibration

Technical Data

Model	Capacity(Kg)
SUP1	20, 30, 50, 100, 150, 200, 250
SUP6	50, 100, 150, 200, 300, 500, 600
SUP62	50, 100, 200, 300, 350
SUP63	50, 60, 100, 150, 200, 300
SUP91	50, 60, 100, 150, 200, 250, 300, 350

Rated Output	2.0±10% mV/V	Output Impedance	350±3 Ω
Zero Balance	±2 %F.S.	Insulation	> 2000/50VDC MΩ
Non-lineatity	0.02 %F.S.	Recommended Excitation	10 V
Hysteresis	0.02 %F.S.	Maximum Excitation	15 V
Repeatability	0.02 %F.S.	Compensated Temperature Range	-10 ~ 40 ℃
Creep(30 Min.)	0.03 %F.S.	Operating Temperature Range	-20 ~ 60 ℃
Temperature Effect on Output	0.025 %F.S./10℃	Safe Overload	150 %F.S.
Temperature Effect on Zero	0.025 %F.S./10℃	Ultimate Overload	300 %F.S. （SUP91：200 %F.S.）
Input Impedance	410±30 Ω

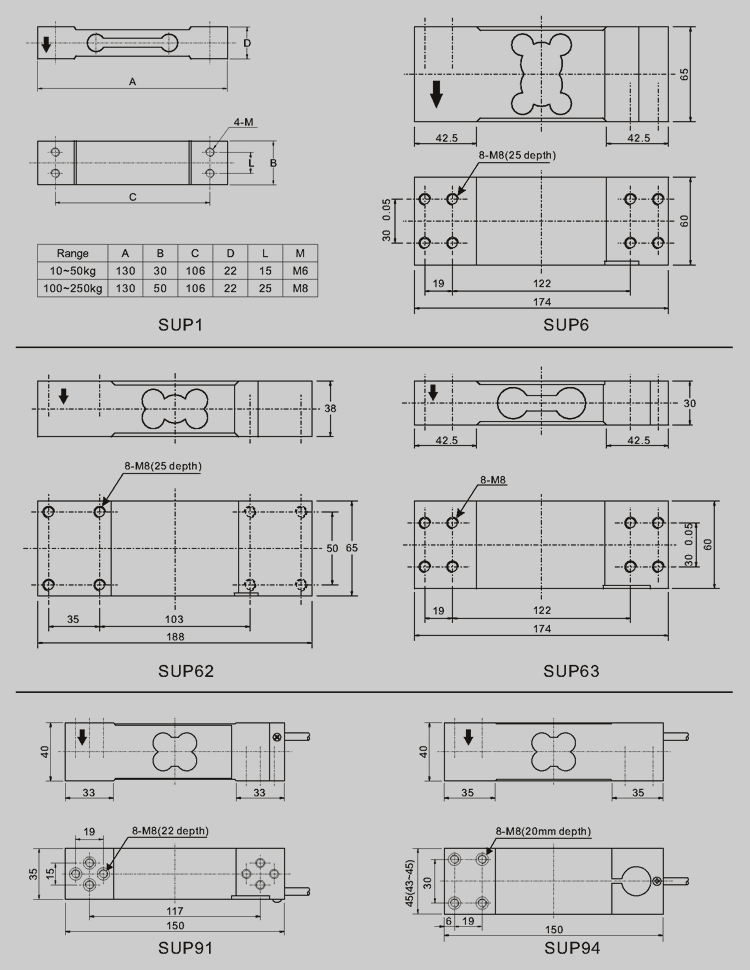

Dimensions

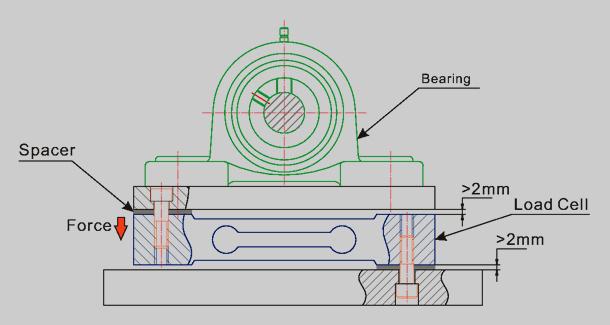

Mounting

Wiring

　　1. Red: + Excitation

　　2. Black: - Excitation

　　3. Green: +Signal

　　4. White: -Signal

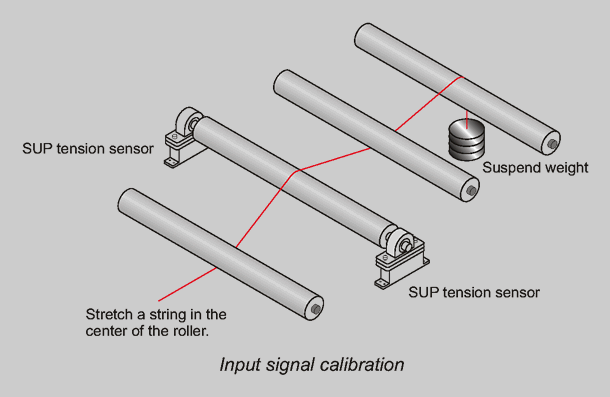

Calibration
