5.3. Basic operation
5.3.1. Run and stop
The run and stop operation is controlled by the Start/Stop Switch(S1) connected to MC1 and MCC.
For more infos about run and stop operation, please refer to Section 4.2.4.
5.3.2. Reel exchange
The reel exchange function is controlled by the switch which is connected to terminal MC2 and MCC. When the switch is OFF, Reel-A will be active while the switch is ON, Reel-B will be active.
For details of reel exchange operation, please refer to Section 4.2.5.
5.3.3. Reset radius
The radius value must be reset after making a replacement of the roll.
To reset the radius to the setting initial radius, follow the below steps:
-
Press Set key to enter the [Enter PWD] screen and set the password to 808.
-
Press Lock key, the radius will be reset.
Note: The radius will be reset to Init Radius[01] automatically when the controller performs the reel exchange operation.
5.3.4. Control mode

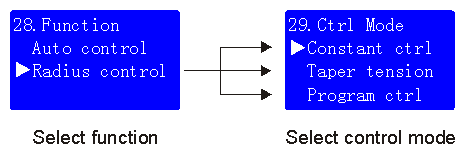

After setting Function[28] to Radius control, the user can select 3 kinds of Ctrl Mode[29]: Constant ctrl, Taper tension and Program ctrl, these control mode can be used in particular applications respectively.
